| Item | Unit | Technical Specifications |
| Travel (X-Y-Z) | mm | 600 × 500 × 300 |
| Travel (U-V) | mm | 60 × 60 (option *80 × 80) |
| Worktable Size | mm | 880 × 680 |
| Max Loading Weight | kg | 500 |
| Best Surface Roughness | μm | Ra ≤ 0.6 |
| Max Cutting Taper | °/80mm | ±10 (option *±15) |
| Water Tank Capacity | L | 144, One Pump |
| Language | / | Chinese, English, Russian, Turkish |
| Connect Type | / | USB, RS232, LAN |
| Machine Weight | kg | 2600 |
| Machine Size | mm | 1909 × 1603 × 1990 |

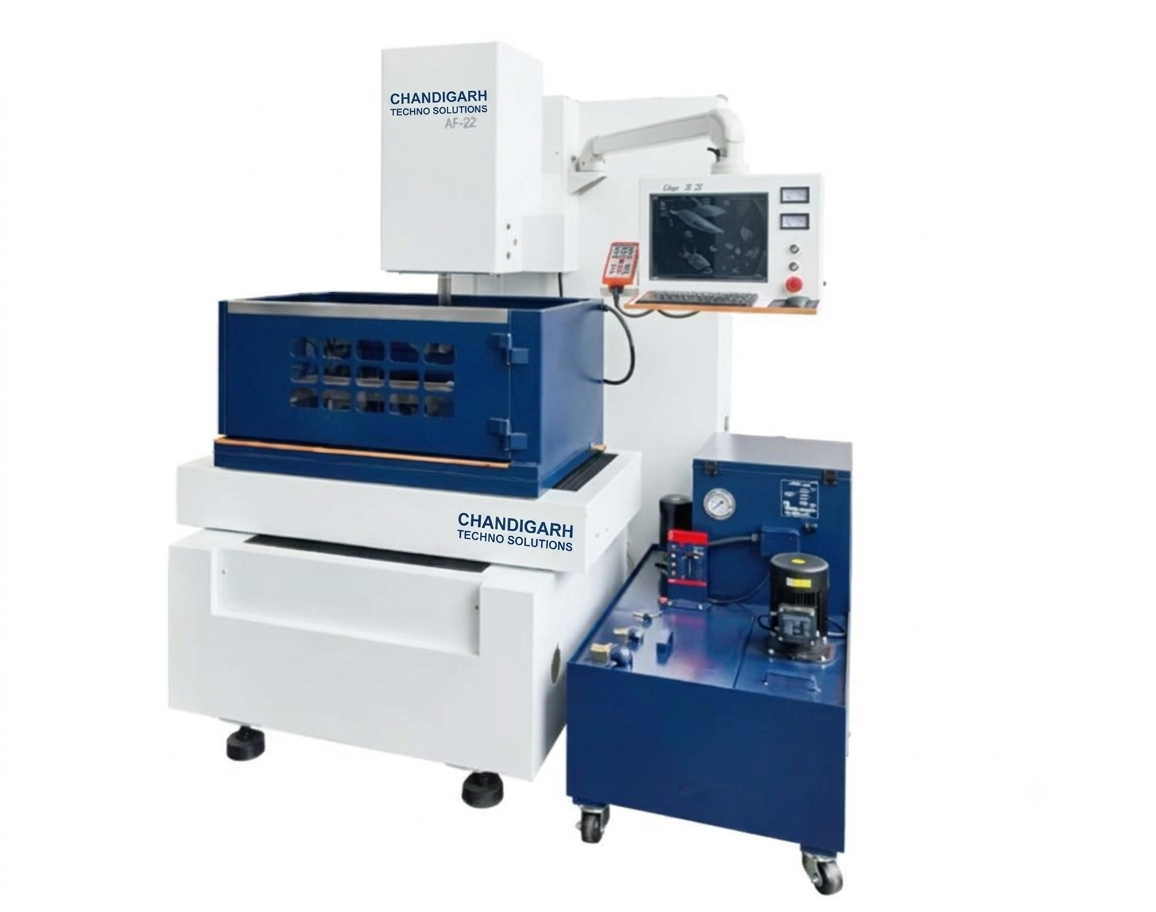

Structural Features（EDM Wire Eroder EFH65CS ）
Machine Bed
1. The machine bed adopts a C-shaped structure;
2. The cast parts are made of high-quality 250-grade Meehanite resin sand castings, specially treated with secondary high-temperature tempering for strong toughness and good overall rigidity;
3. This machine uses Panasonic servo motors drive system, and the machine’s motion accuracy is determined by precision testing during machine assembly and pre-shipment testing using a laser interferometer.
4.The linear guides and lead screws all use original parts imported from Japan or Taiwan.
Guide Rail Structure
1. The guide rails on the same plane are processed and formed in one go using a professional grinding machine;
2. The guide rail installation structure of this equipment is a double-plane design;
3. The guide rails of this equipment are protected by automatic lubrication;
5. The motion accuracy of the guide rails in all directions is ensured by the assembly precision.
